The Macro-Blue TECHNICAL DIFFERENCE!

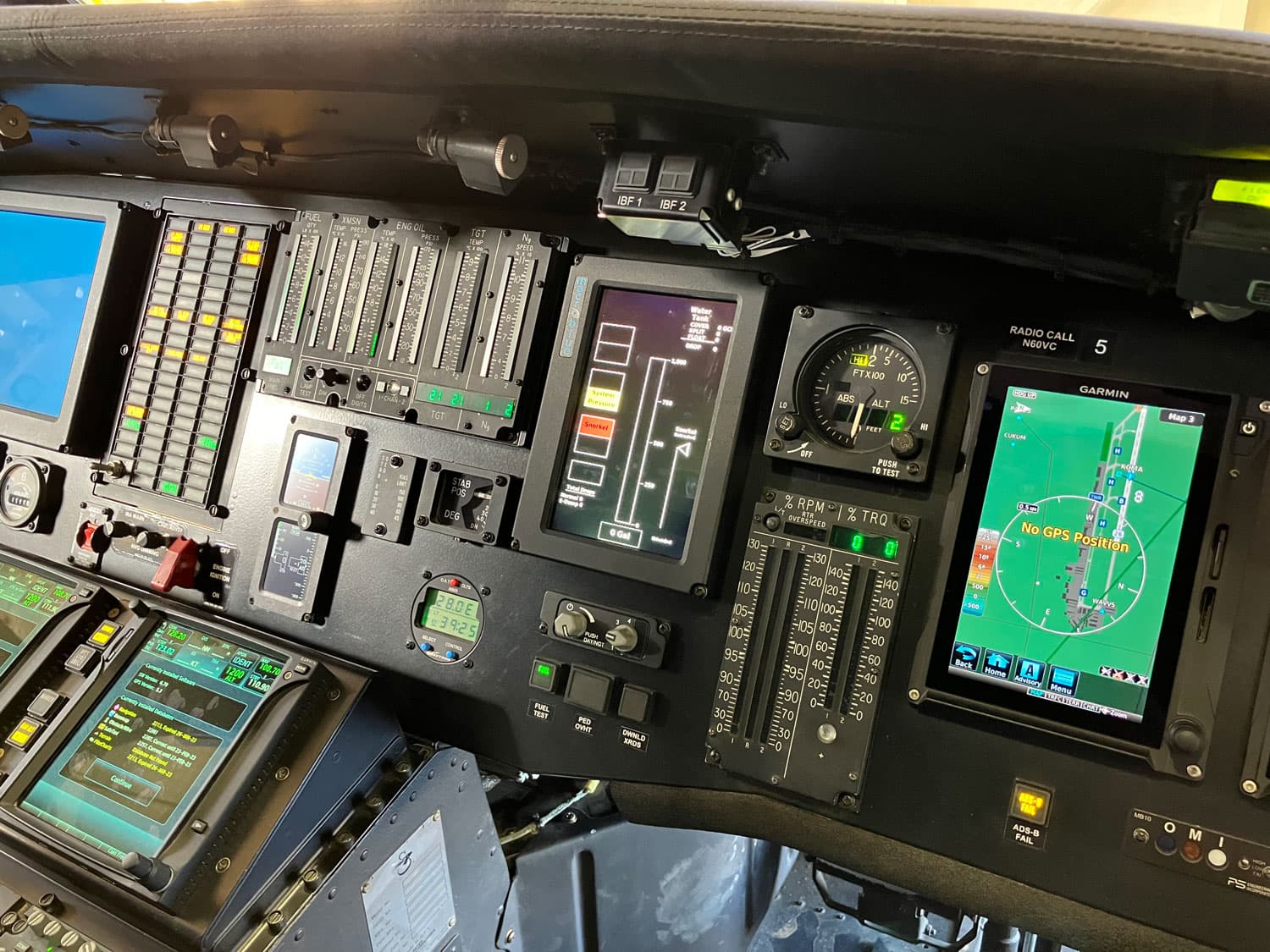

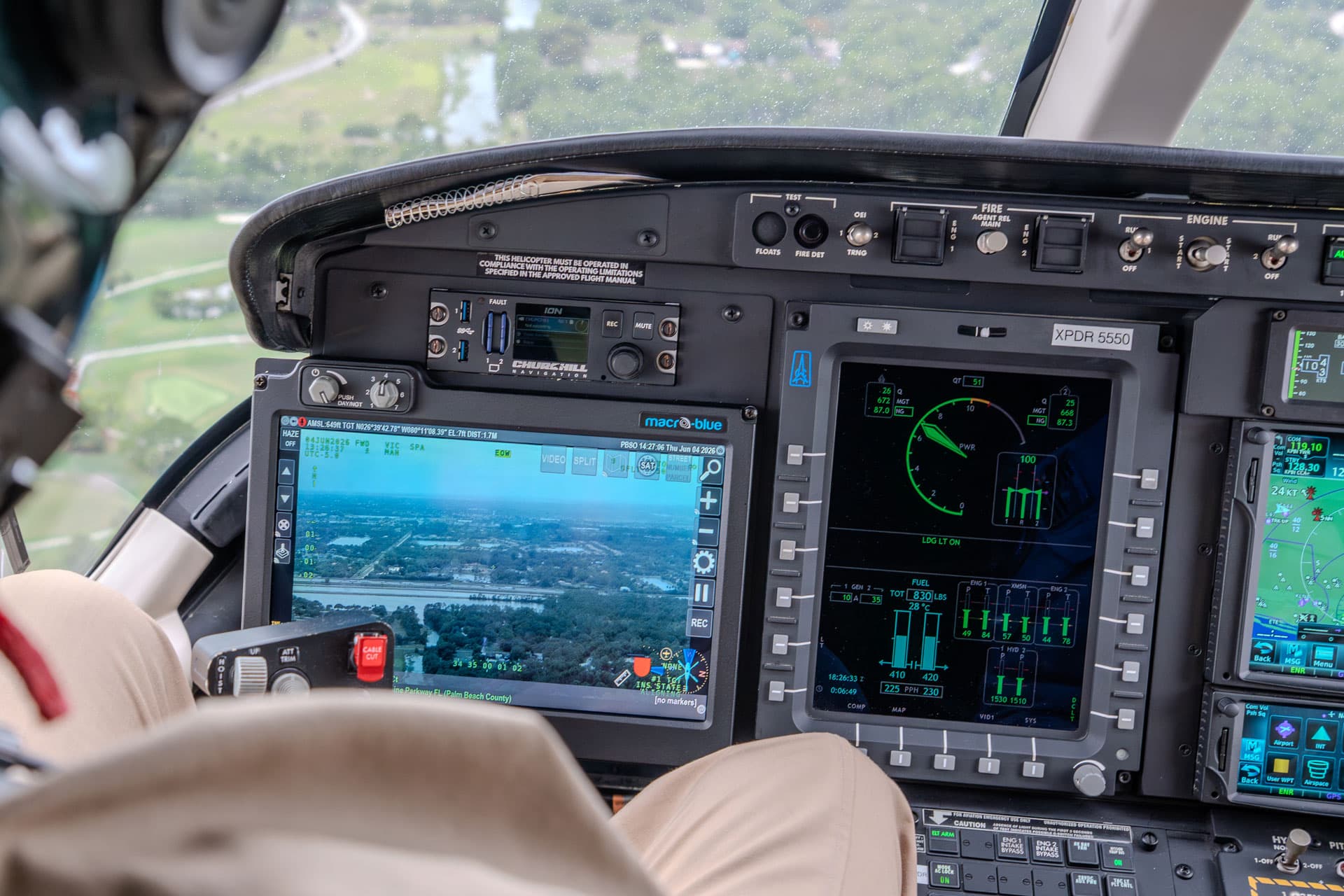

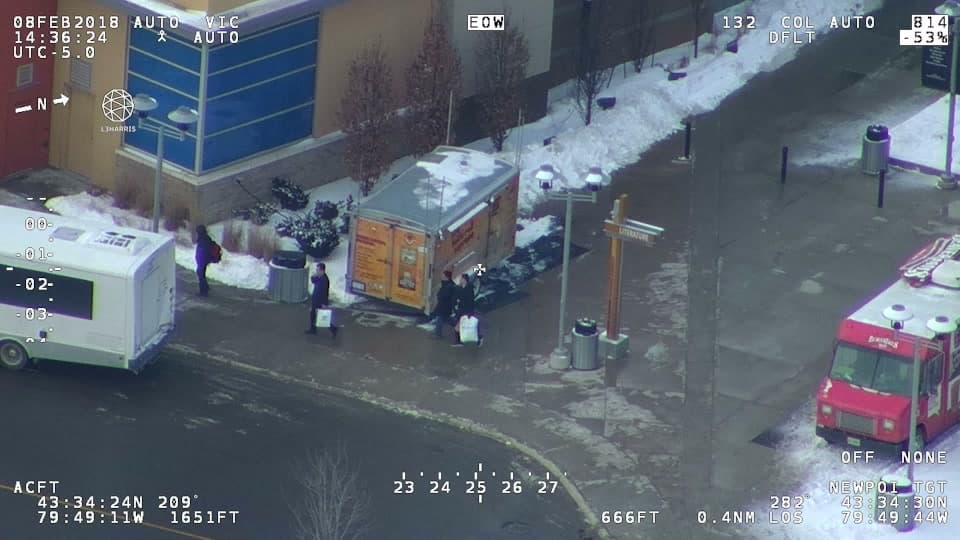

Macro-Blue Tactical Cockpit Displays are engineered to optimize the output from infrared sensors, EO cameras and moving map systems.

Macro-Blue displays provide the clearest image possible under all conditions, (especially under extremes) such as direct sunlight, night and (NVG operation).

We start with the highest grade industrial LCD panels, then modify and optimize to meet or exceed the MIL-STD-3009 standard for NVIS, MIL-L-85762A contrast & luminance, MIL-C-675 Anti-Reflective Glass- no sun hoods needed here.

Macro-Blue Proprietary Technology

SignalLock™ Technology

Occasionally, video data gets corrupted that results in screen blackout. Our proprietary software locks onto the video signal and reduces screen blackout, even when a corrupt video signal is sent.
Don’t black out up there!

Passively Cooled - No Fans

The New MB Q-Series Displays run cooler, eliminating the necessity for a cooling fan. We are no fans of fans because moving parts reduce reliability and collect dust. So when the dust settles, it won’t be inside a Q-Series Display!

DisplayLink™ Technology

DisplayLink™ is a high-speed bi-directional data path between a display head and a remote Video Management Unit. The link allows relocating multiple video connections away from the actual display, such as an equipment bay close to other sources.


Tactical Displays Developed for TFO's

        • Superior Optics Technology

        • Unparalleled Sunlight Readability

          • Instantaneous Switching Between Sources

            • Backlit Controls – No Fumbling in the Dark

              • Only 6 Watt Power Consumption

                • 50% Less Components = Eliminated Failure Points

                  • Thinnest Profile Display

                    Slide Introducing DisplayLink™ Introducing DisplayLink™

                    DisplayLink™ is a high-speed bi-directional data path between a display panel and remote Video Management Unit.

                    When your cockpit configuration is best-suited for an ultra-thin tactical display, Macro Blue's DisplayLink™ Technology is your solution.

                    DisplayLink™ Technology is a High-Speed Bi-Directional Data Path that connects our MBRX4 Video Management Unit to a thin profile display head in the cockpit via coax cable. The result is enhanced mounting choices, possible fuel savings due to reduced cable weight and the ability to locate all video connections in an equipment bay close to other video/computer sources.

                    All of the advanced features and controller options available with our Standard Displays are available with our DisplayLink™ Technology-equipped displays.

                    MBRX4 - Remote Video Management Unit

                    We Have the Perfect Size to Fit Your Mission.
